JC JCY60 Power Meter


Features

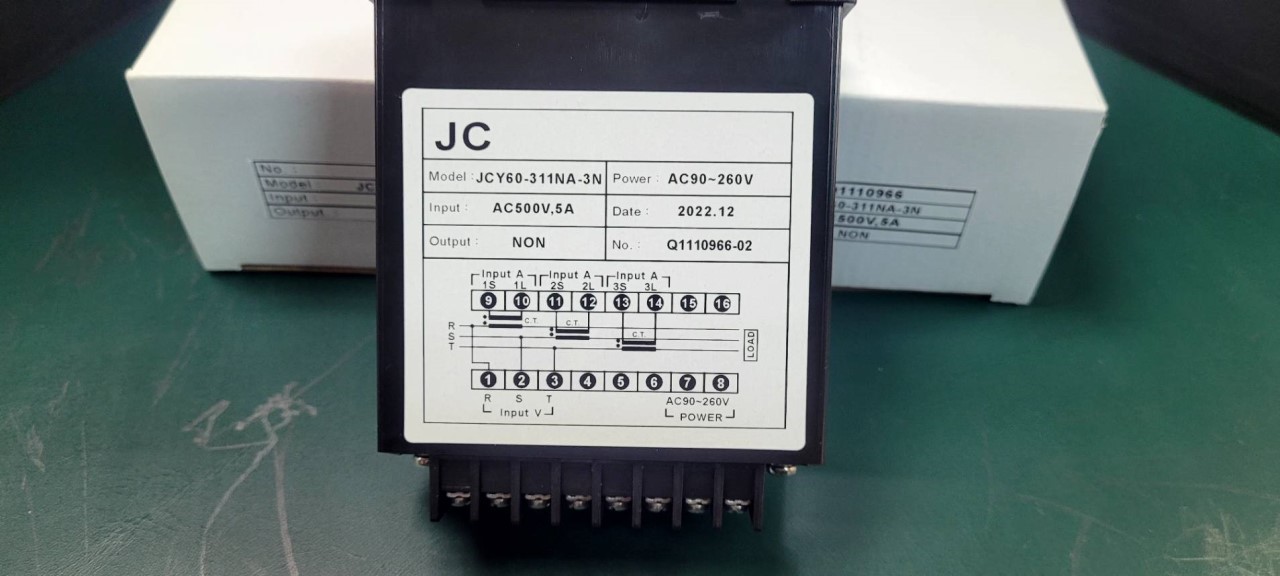

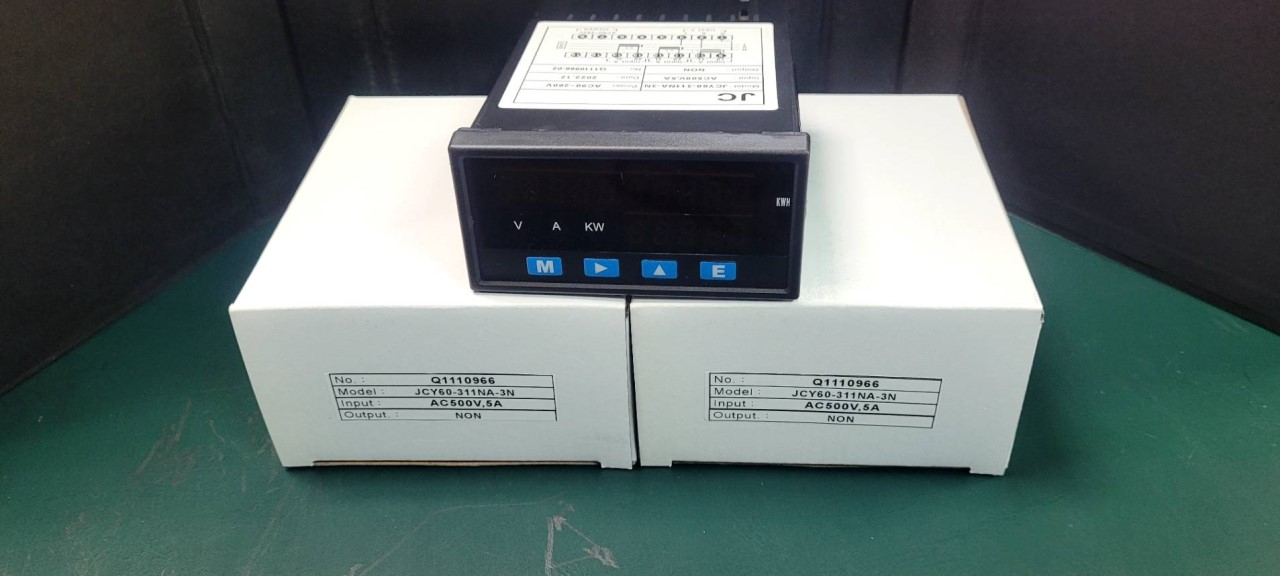

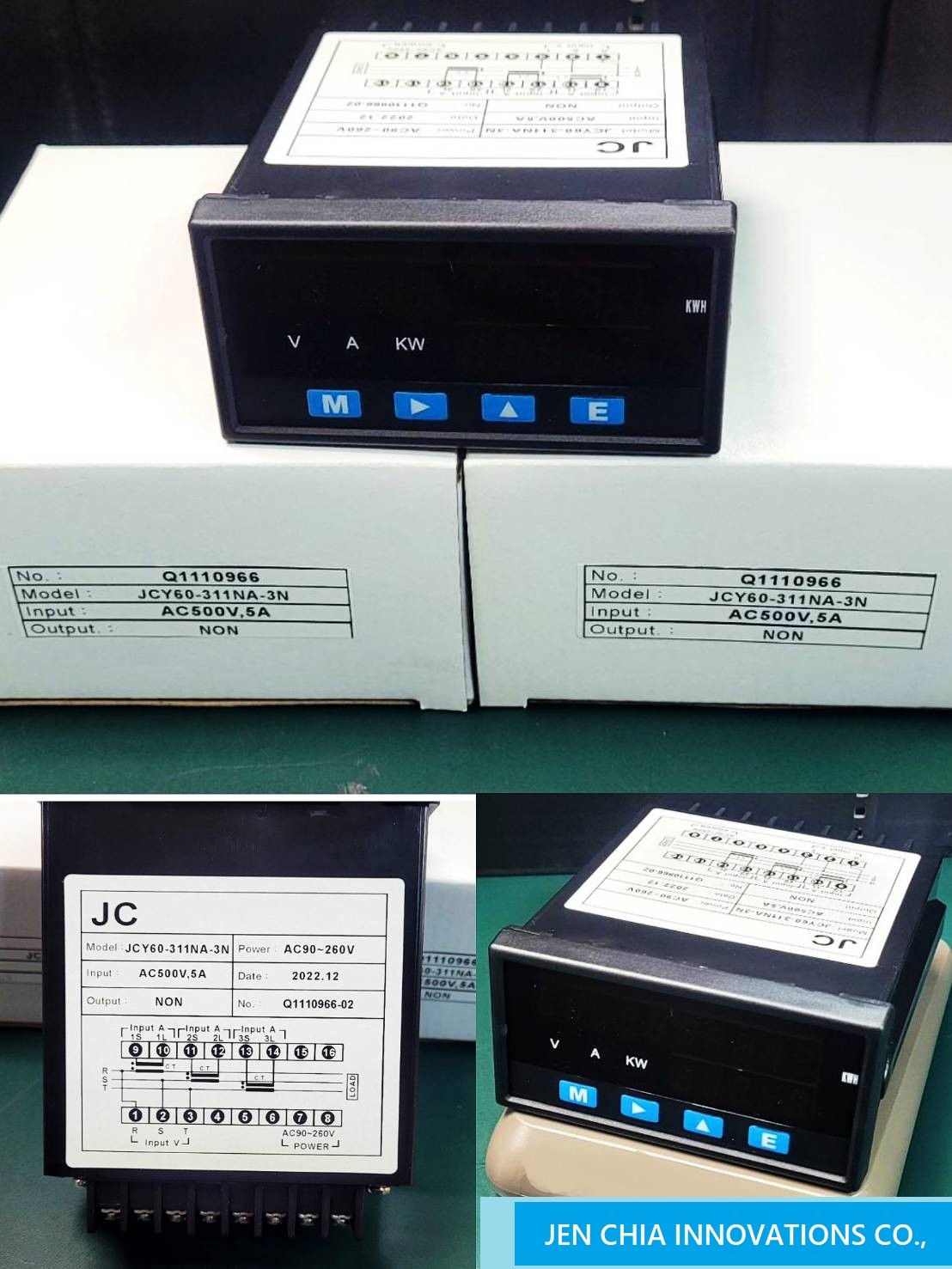

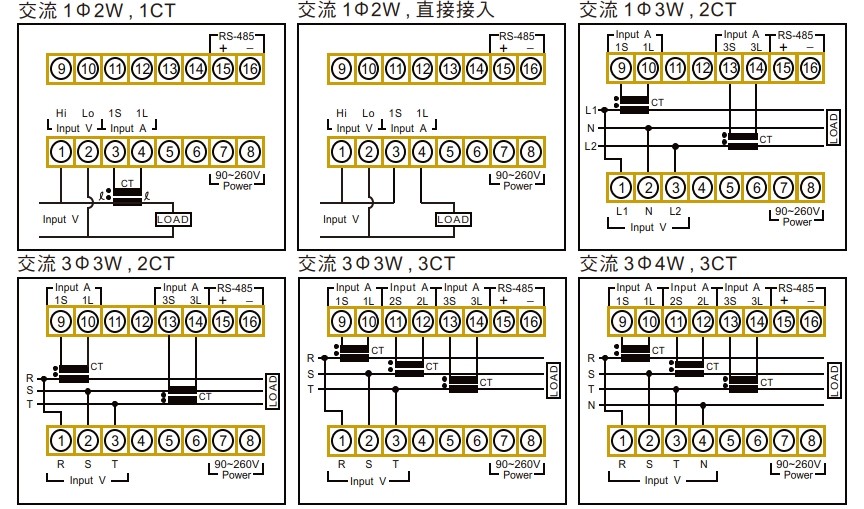

- Digital multifunction meters: 1φ2W, 1φ3W,       3φ3W, 3φ4W configurations, with open voltage configuration for convenient on-site wiring operations.
- Digital AC dual-row display, 10-digit display (KWH).
- 5-digit display (V, A, KW) with manual switch for voltage, current, and wattage display.
- Switchable display of R, S, T phase voltage and current values.
- AC current can directly handle up to 10A (specified); for loads exceeding 10A, additional CT (current transformer, 5A ratio) with adjustable multiplication factors from 1 to 9999 can be configured.
- Digital RS-485 communication function (Modbus RTU format) optional.
- Overload capacity: continuous AC voltage up to 650V, current up to 3 times continuous.
- Isolation design to avoid interference between input, output, and power supply.
- Power outage KWH cumulative memory function.

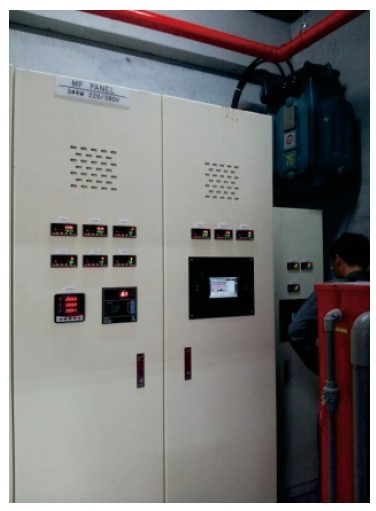

- Suitable for green industries, renewable energy market applications, and energy-saving billing and monitoring systems for air conditioning to improve power supply quality and enhance industrial competitiveness.

Specifications

- Display: 10-digit red LED display (character height 0.3") for KWH, 5-digit green LED display (character height 0.3") for V, A, KW.
- Data storage method: EEPROM.
- Accuracy: ±0.25% F.S. (Full Scale).
- Sampling time: 500ms, with automatic detection for 45Hz / 60Hz frequency.
- Ratio multiplier: PT and CT current ratios, configurable through planning settings.
- Operating environment conditions: 0 to 60℃ (80% relative humidity).
- Operating power supply: AC90-260V.
- Power consumption: <4VA.
- Dielectric strength: AC2KV for 1 minute (input power).
- Insulation resistance: 100MΩ at DC500V.
- Enclosure material: ABS, complies with UL94 flame retardant rating, temperature resistance 76℃ to <85℃.

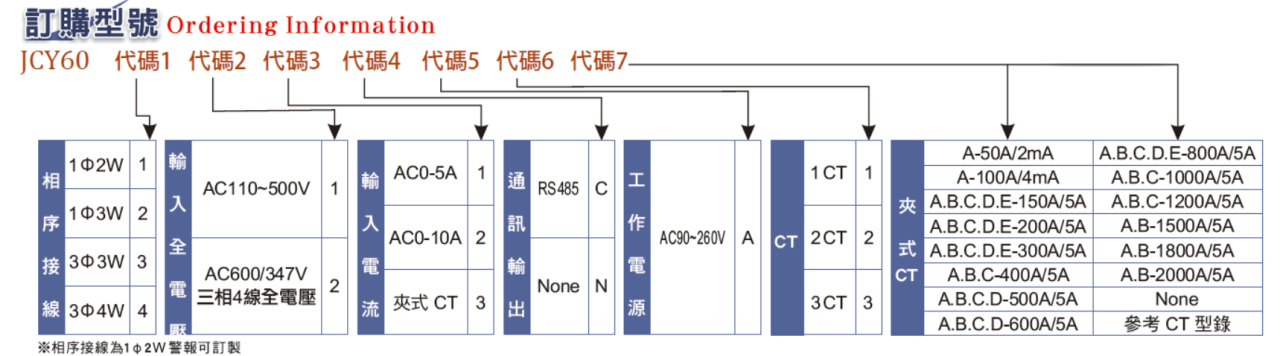

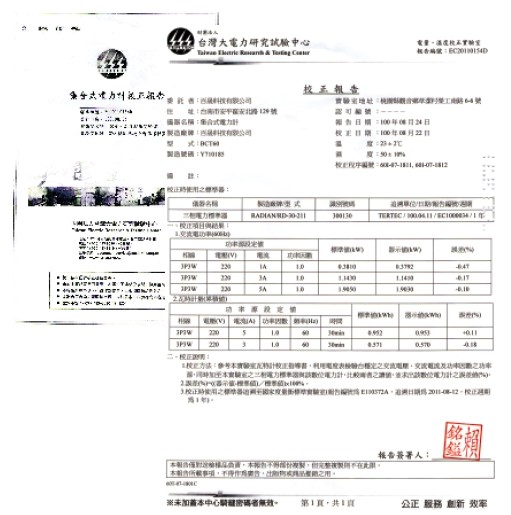

- Taiwan Electrical Research and Testing Center registration number: EC20110154D.
- National Metrology Standards Laboratory registration number: E110372A.

JCY60 Power Meter Datasheet
